A loading and unloading robot is a device used to fully automate the machine tool manufacturing process.
A loading and unloading robot primarily automates the machine tool manufacturing process and utilizes integrated processing technology. It is suitable for loading and unloading, workpiece turning, and workpiece rotation on production lines. Many machining operations rely on dedicated machines or manual labor. This is ideal for a limited number of products and low production capacity. However, with advancements in technology and the rapid pace of product upgrades, the use of dedicated machines or manual labor has exposed numerous shortcomings and weaknesses. Firstly, dedicated machines require large floor space, are complex, and require inconvenient maintenance, making them unsuitable for automated assembly line production. Secondly, they lack flexibility, making it difficult to adapt to rapidly changing conditions and hindering adjustments to product mix. Furthermore, manual labor increases labor intensity, is prone to work-related accidents, and results in relatively low efficiency. Furthermore, the quality of products produced using manual loading and unloading methods is not stable enough to meet the demands of large-scale production.
The above problems can be solved using a loading and unloading robot automated flexible handling system. This system offers high efficiency and stable product quality, high flexibility and reliability, and a simple structure that is easy to maintain. It can meet the production needs of a wide range of products, allowing users to quickly adjust product mixes and expand production capacity, while significantly reducing the workload of industrial workers.
Mechanical Features

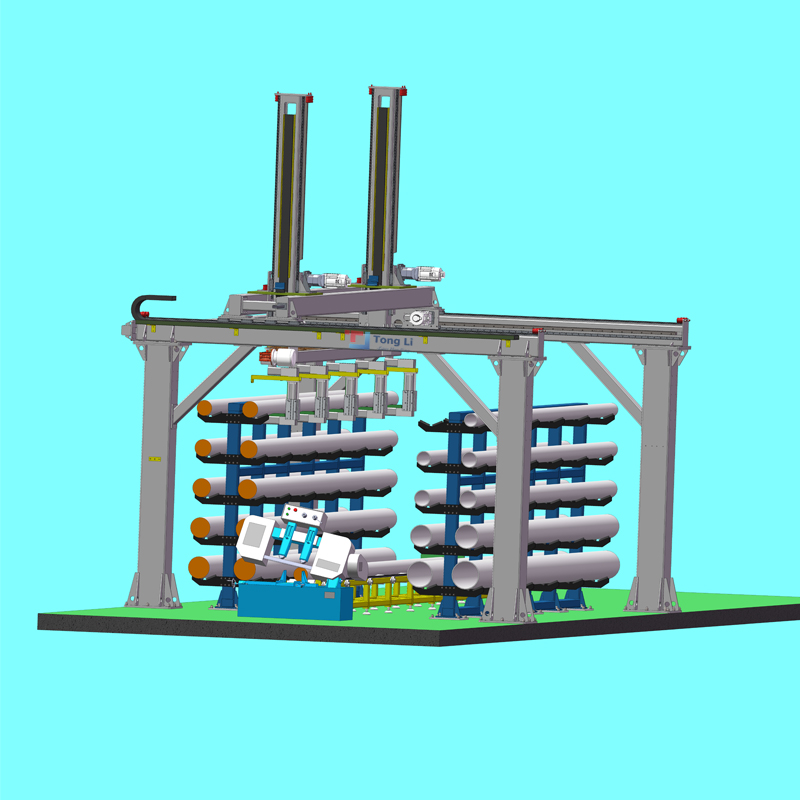

The loading and unloading robot adopts a modular design and can be combined in various configurations to form a multi-unit production line. Its components include: columns, crossbeams (X-axis), vertical beams (Z-axis), control systems, loading and unloading hopper systems, and gripper systems. Each module is mechanically independent and can be combined arbitrarily within a certain range, enabling automated production of equipment such as lathes, machining centers, gear shapers, EDM machines, and grinders.
The loading and unloading robot can be installed and debugged separately from the machining center, and the machine tool portion can be a standard machine. The robot portion is a completely independent unit, allowing automation and upgrades to existing machine tools even at the customer’s site. In other words, when the robot breaks down, it only needs to be adjusted or repaired without affecting the normal operation of the machine tool.
Control system
The robot control system is the brain of the entire automation line, controlling each part of the mechanism, which can work independently or in coordination to complete production smoothly.
Functions of the robot control system:
①Programming the robot’s trajectory;
②Independent operation of each part of the mechanism;
③Providing necessary operation guidance and diagnostic information;
④Coordinating the working process between the robot and the machine tool;
⑤The control system has rich I/O port resources and is expandable;
⑥Multiple control modes, such as: automatic, manual, stop, emergency stop, fault diagnosis.
Advantages
(1) High production efficiency: To improve production efficiency, the production rhythm must be controlled. In addition to the fixed production and processing rhythm that cannot be improved, automatic loading and unloading replaces manual operation, which can well control the rhythm and avoid the impact of human factors on the production rhythm, greatly improving production efficiency.
(2) Flexible process modification: We can quickly change the production process by modifying the program and gripper fixtures. The debugging speed is fast, eliminating the need for employee training time and quickly putting into production.
(3) Improve the quality of workpieces: The robot-automated production line is completely completed by robots from loading, clamping, and unloading, reducing the intermediate links. The quality of parts is greatly improved, especially the surface of the workpiece is more beautiful.
In practice, automatic loading and unloading robots can be widely used in almost all walks of life in industrial production. They have the advantages of easy operation, high efficiency, and high workpiece quality. At the same time, they can save operators from heavy and monotonous working environments. They are increasingly favored by manufacturers. Owning such a production line will surely highlight the production strength of the enterprise and improve market competitiveness. It is an inevitable trend in industrial production and processing.
