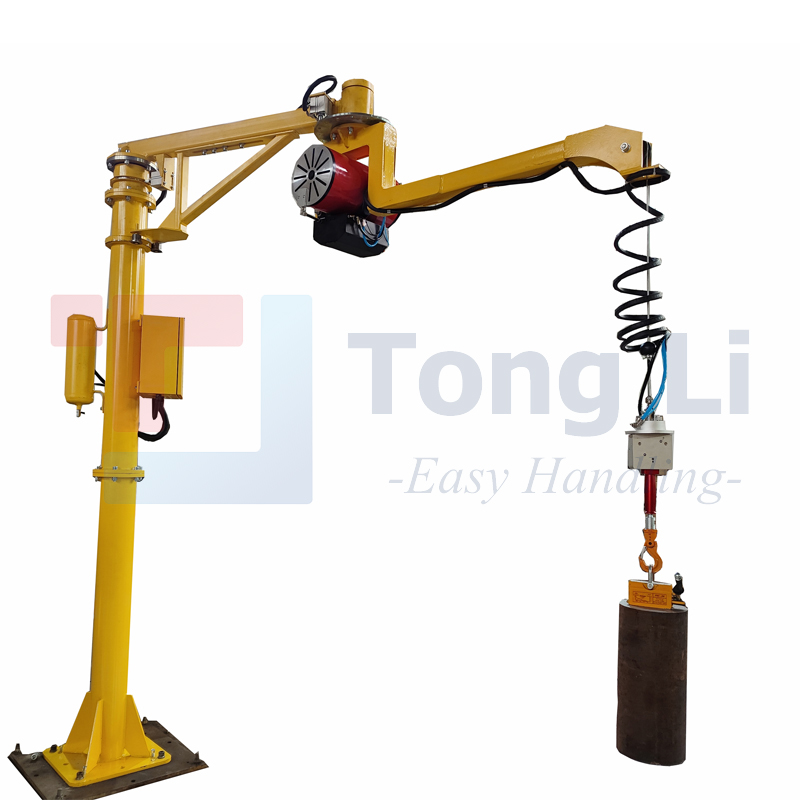

The balance crane manipulator is a lifting device specially used to assist manual handling of heavy objects and achieve precise positioning. It can offset or balance most of the weight of the load through a unique balancing mechanism, so that the operator can easily move, rotate and accurately position the heavy object in three-dimensional space with only a small amount of force, as if the workpiece is in a “weightless” state.
Main components
Robot arm structure: usually a multi-section joint arm (hard arm type) or a winch mechanism with a wire rope (soft rope type).
Hard arm type: The arm is a rigid structure, providing better rigidity and positioning accuracy.
Soft rope type: The load is suspended by a wire rope or chain, and the structure is relatively simple.
Balance system: The core part to achieve the “zero gravity” effect, such as a cylinder, counterweight, spring or servo motor.
Lifting/lowering mechanism: Controls the vertical lifting and lowering of the load, usually completed by the balance system itself or an independent electric hoist.
End effector (fixture): customized according to the shape, size, weight and characteristics of the workpiece to be handled, such as pneumatic grippers, vacuum suction cups, electromagnetic suction cups, clamps, hooks, etc.
Operating handle/control system: for the operator to directly hold and guide, usually integrated with buttons to control the opening and closing of the fixture and fine-tune the lifting speed.
Support structure: The balance crane can be installed on a column (column type), suspended on a track (track type/suspension type), fixed on a wall (wall-mounted type) or integrated on a gantry to adapt to different working ranges and environments.
Advantages of the balance crane manipulator
Greatly reduce labor intensity: This is the core advantage. The operator does not need to bear the full weight of the heavy object, and can easily move it with only a small force, which greatly reduces physical exertion and fatigue.
Improve production efficiency: The handling process is smoother and faster, shortening the material turnover time and improving the production rhythm, especially in highly repetitive handling operations.
Ensure safe operation:
Reduce the risk of work-related injuries: Avoid occupational injuries such as sprains, strains, and lumbar injuries that may be caused by manual handling of heavy objects.
Reduce damage to workpieces: Smooth movement and precise positioning capabilities reduce the risk of collision, scratches, or falls of workpieces during handling.
High-precision positioning and fine operation: Although manually guided, because the load is in a “zero gravity” state, the operator can position the workpiece with sub-millimeter or even higher accuracy, and perform precision assembly, alignment, insertion, etc. This is the artificial flexibility advantage that is sometimes difficult to replace with fully automatic robots.
Excellent flexibility and adaptability:
Wide adaptability to workpieces: By replacing different customized fixtures, workpieces of various shapes, sizes, weights, and materials can be handled.
Applicable to complex environments: The joint structure of the arm enables it to bypass obstacles on the production line and enter narrow or obscured areas.
Human-machine collaboration: Perfect combination of machine power and human intelligence, judgment, and flexibility.
Easy to operate, learn and use: Usually designed in accordance with ergonomics, intuitive operation, short learning curve, and no complex programming skills are required.
High return on investment: Compared with fully automatic robot systems, balance cranes usually have lower initial investment and maintenance costs and can quickly bring returns in terms of productivity and safety.
Balance cranes are widely used in various industrial production scenarios that require frequent, precise and labor-saving handling of heavy objects:
Loading and unloading of machine tools: Accurately load or unload heavy or special-shaped workpieces (such as castings, forgings, large parts) to CNC machine tools and machining centers.
Automobile and parts manufacturing: Handling and assembly of large or heavy parts such as engines, gearboxes, doors, seats, wheels, etc.
Mold handling and replacement: In stamping workshops, injection molding workshops, etc., assist workers to easily and safely handle and replace heavy molds.
Assembly of large parts: In heavy machinery, engineering equipment, aerospace and other industries, assist workers to accurately position bulky parts.
Welding station: Assist workers to carry and position heavy structural parts to be welded.
Logistics and warehousing: Sorting, handling and stacking of large and heavy goods at the warehouse or at the end of the production line.
Glass and plate handling: For large, fragile or traceless glass, stone, metal plates, etc.
Packaging industry: Handling heavy packaging boxes, bagged products, etc.
